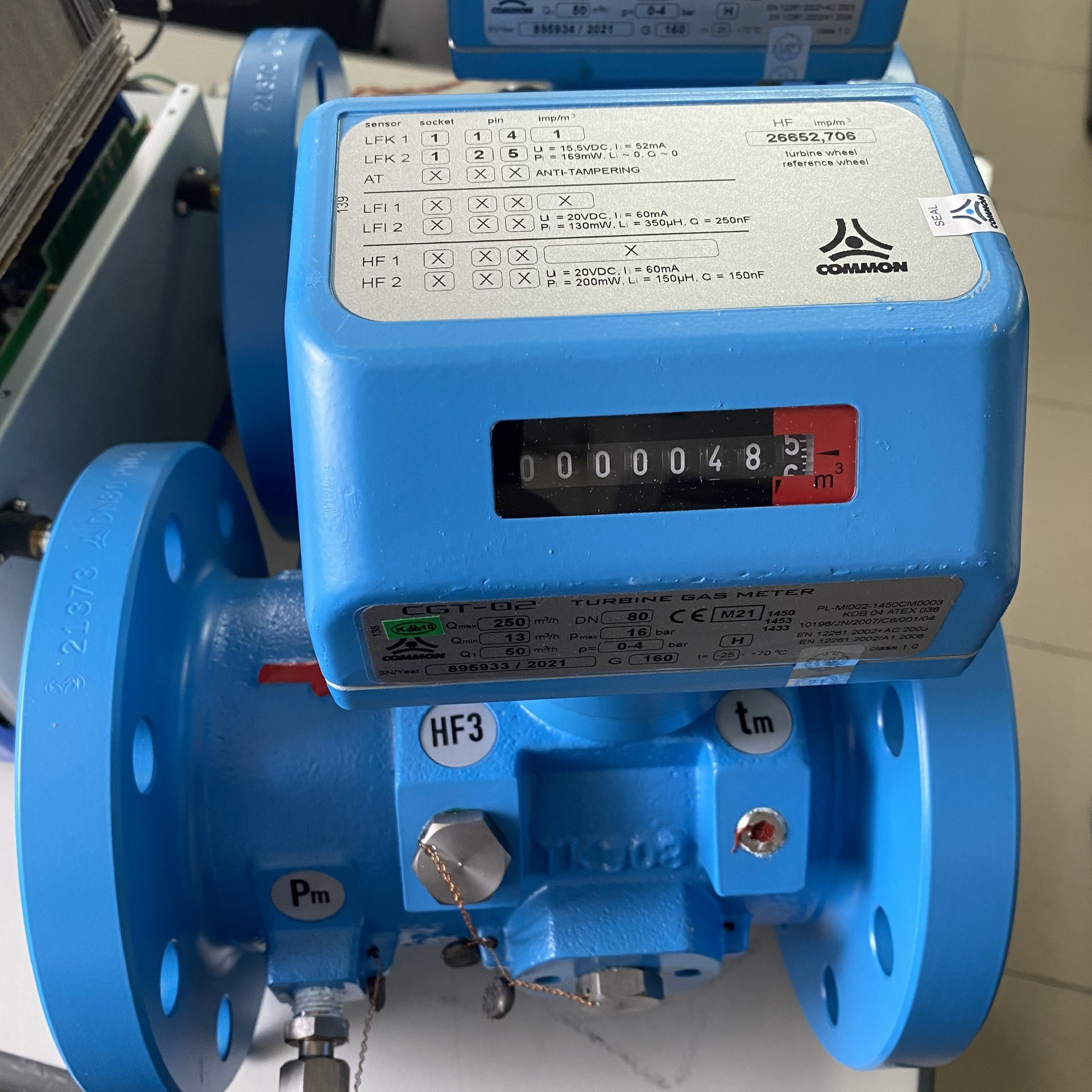

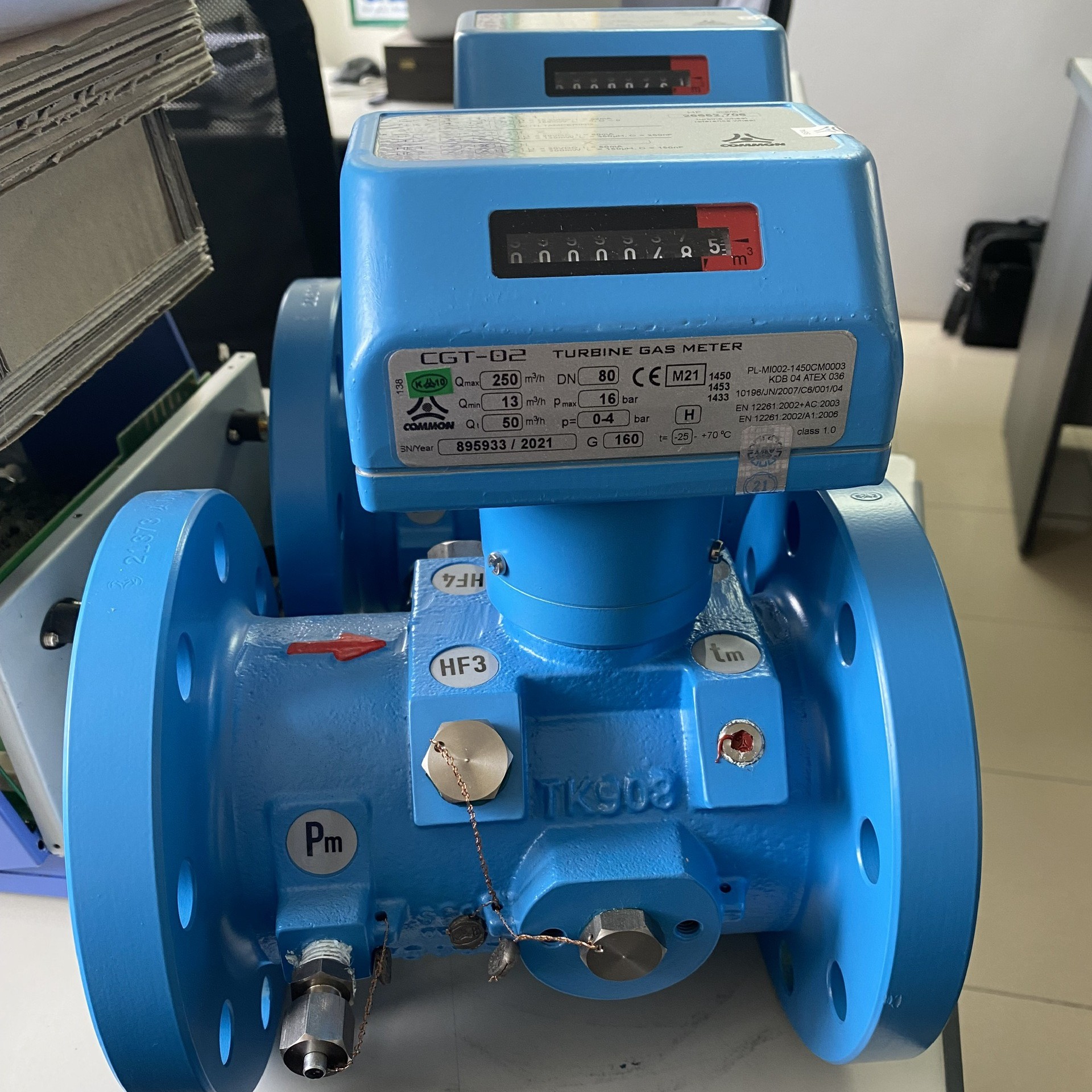

Turbine Gas Flow Meter – Poland

Brand: COMMON

Origin: Poland

CPT Meters are designed to measure gas flow rates ranging from low to high, operating at low, medium, or high pressures.

They are specifically engineered for industrial use and secondary metering applications.

They offer various configuration options to suit diverse applications, such as integrated oil pumps and PTFE-coated versions.

Versions with advanced signal output capabilities facilitate communication and measurement data sharing, making them suitable for smart management systems.

The CPT model is an inline flow meter where the gas flow drives a turbine wheel. The turbine's rotational speed is proportional to the gas flow velocity.

Motion is mechanically transmitted to the totalizer via a magnetic coupling.

The CPT meter consists of five main components:

- A meter body housing all components
- A flow straightener to stabilize and accelerate the inlet flow
- A measuring unit comprising a turbine and rotor blades
- A magnetic coupling to transmit turbine motion to the totalizer
- A totalizer to record the measured values

APPLICATIONS

- The CPT model is designed to measure natural gas as well as filtered, non-corrosive gases.
- They are used for low, medium, and high flow rate measurements across low, medium, and high pressure ranges.
- They are specifically designed for industrial metering and secondary metering applications.
- Various versions with options such as oil pumps or PTFE coating make them suitable for heavy-duty metering applications.

KEY BENEFITS

- High-precision meter
- High flow capacity, up to 2500 m³/h
- Pressure range up to 40 bar
- Equipped with the Cyble standard
- Wide range of options: low and high flow, frequency transmitters, electronic temperature correction, oil pumps, versions for heavy gases, etc.

Industries:

- Petrochemical refining
- Gas and natural gas production and distribution
- Electronic component manufacturing
- Automotive manufacturing
