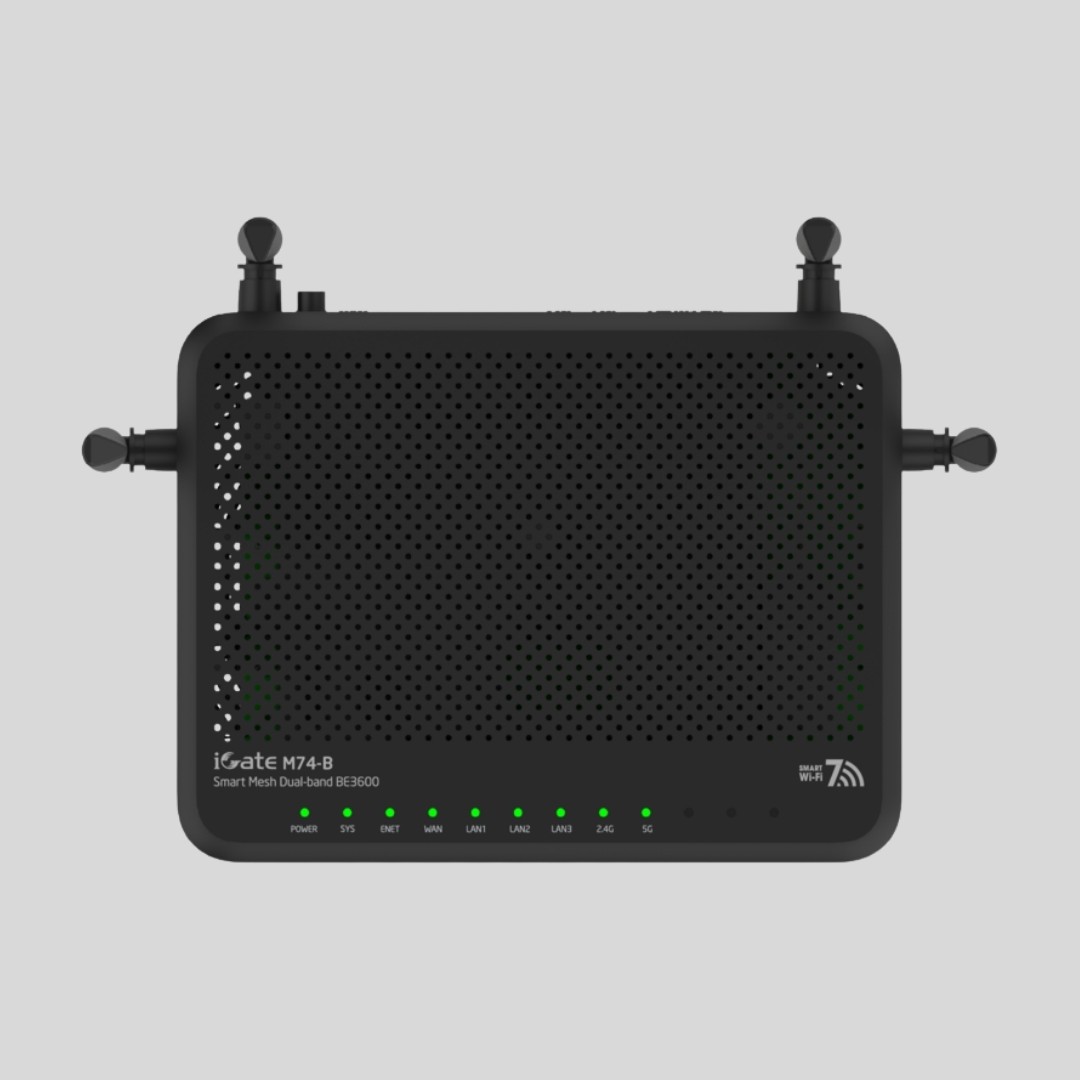

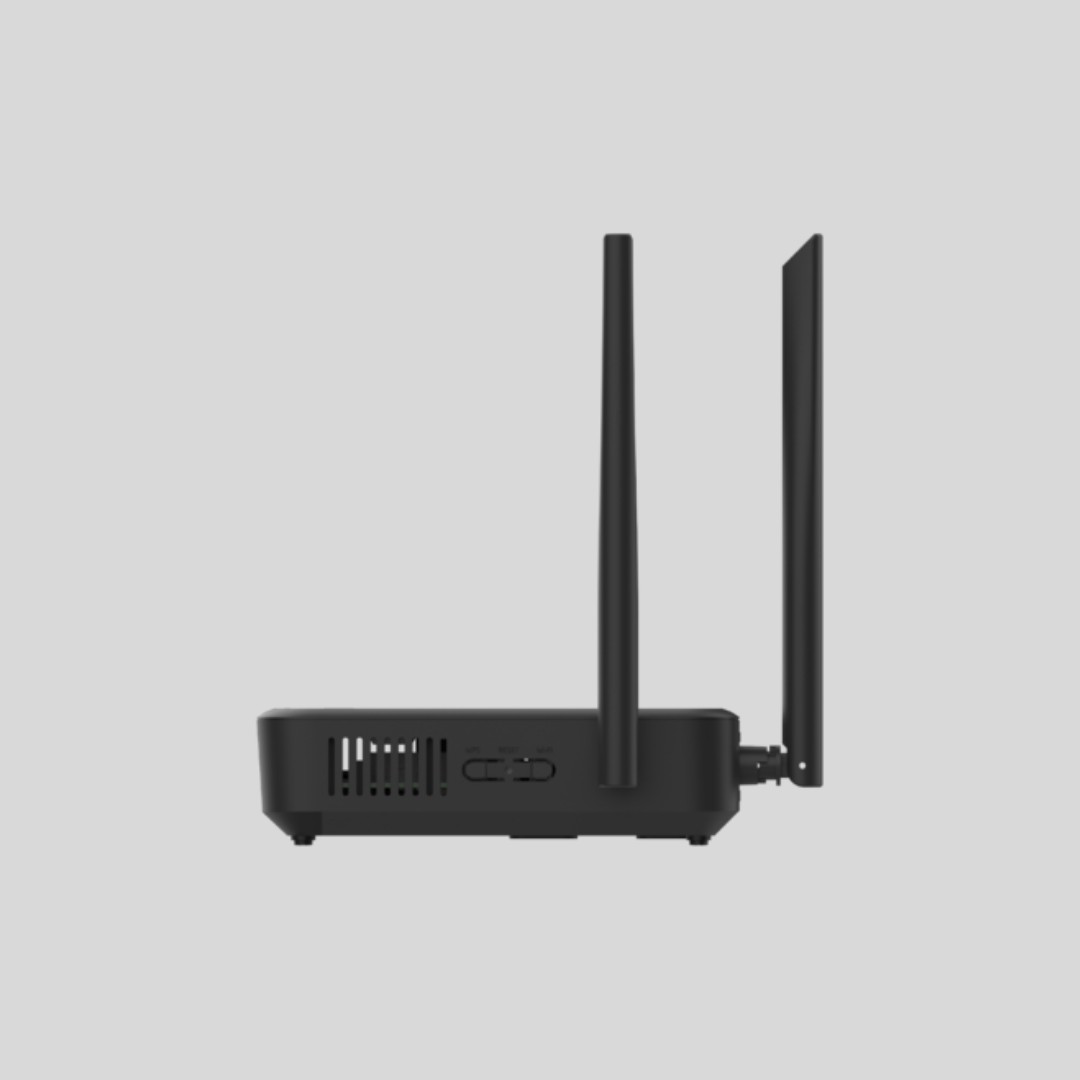

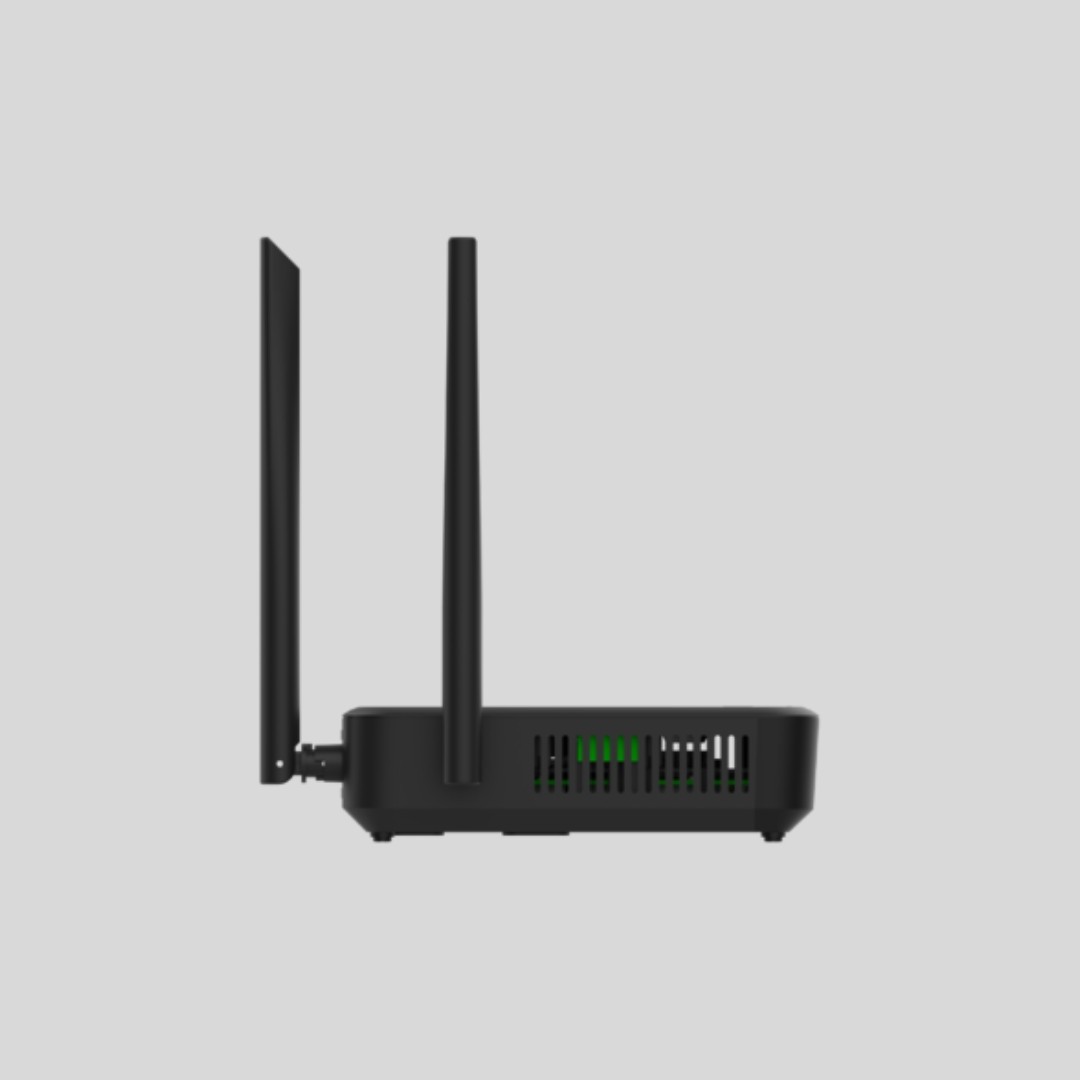

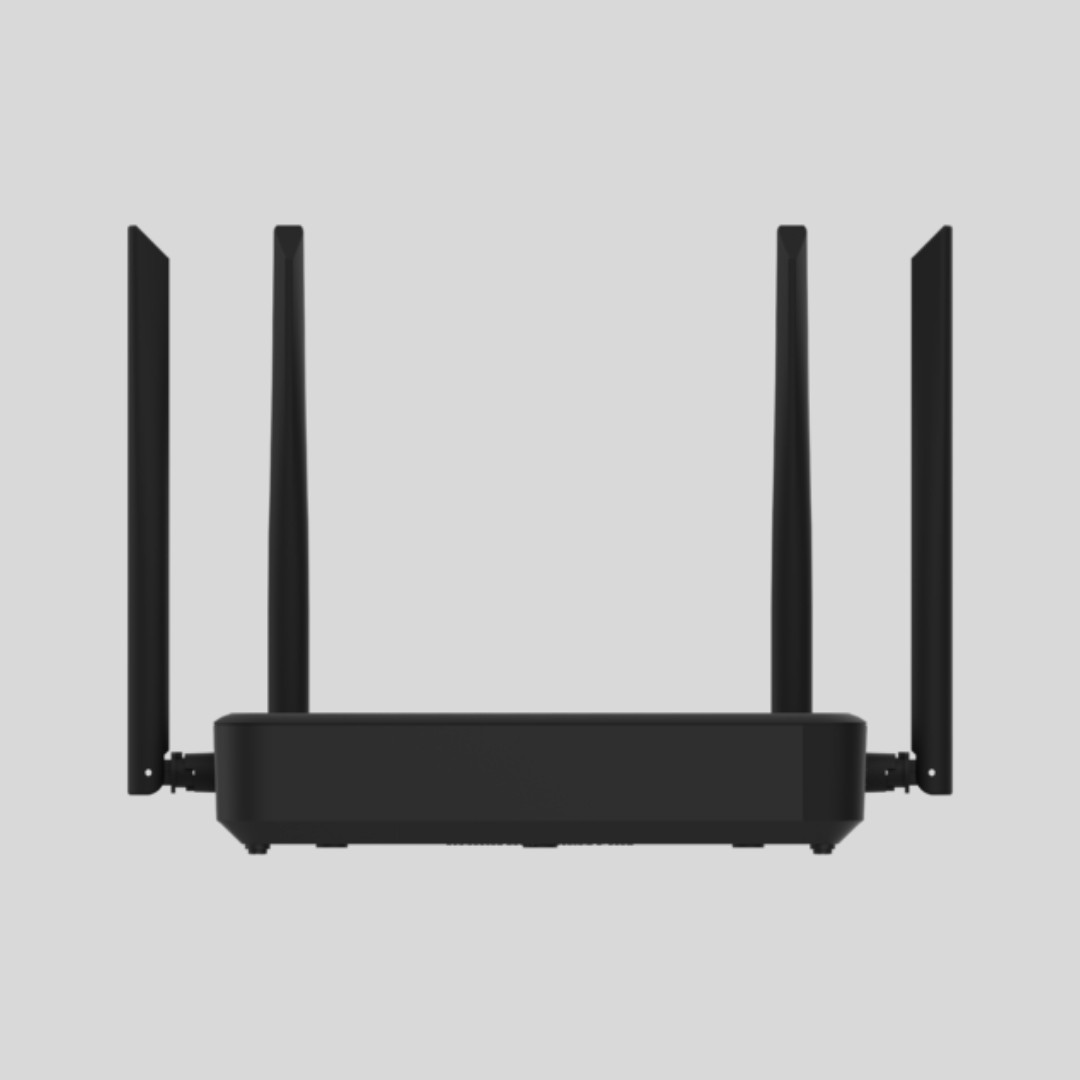

iGate M74-B device

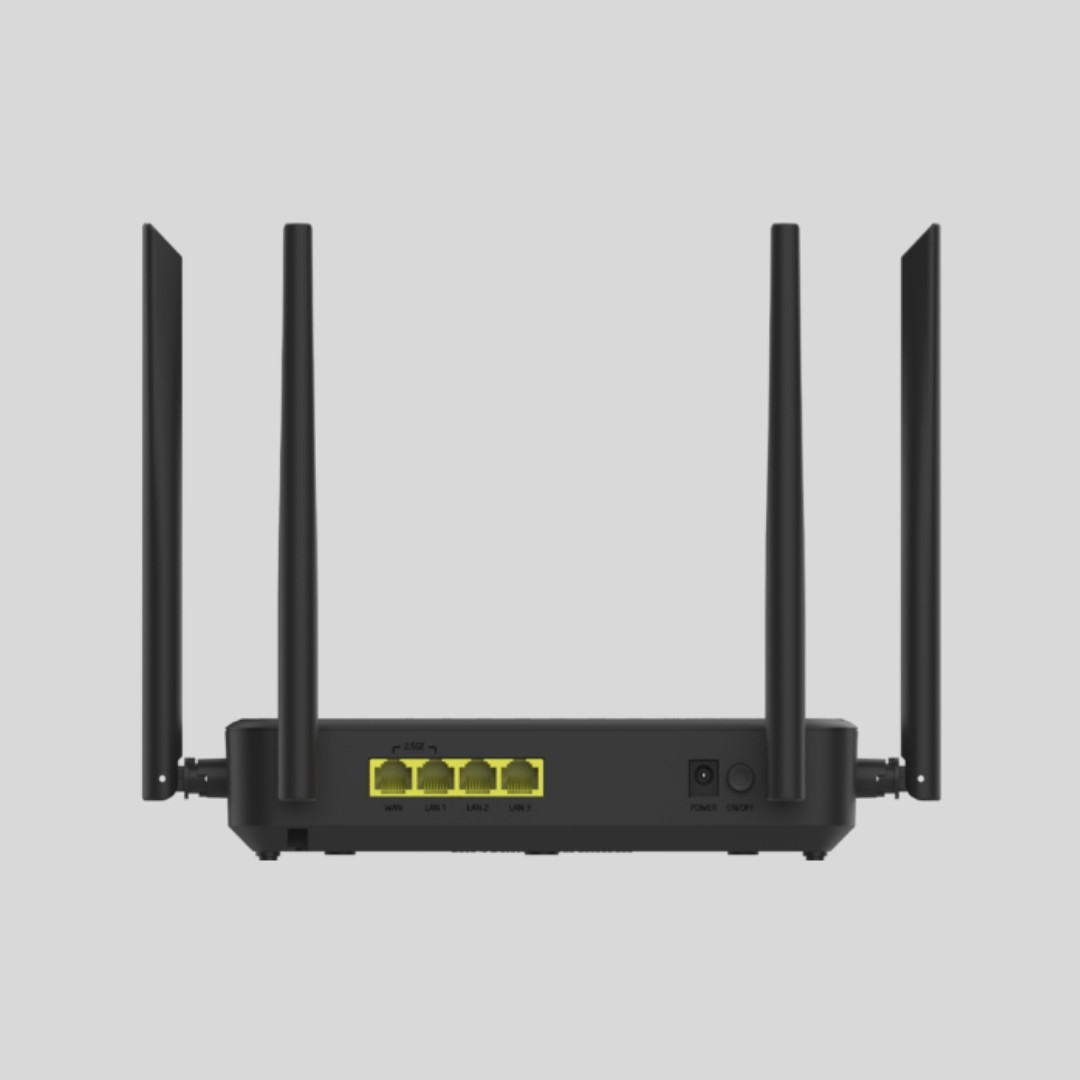

The iGate M74-B is a Wi-Fi Access Point designed to create a Wireless Local Area Network (WLAN), enabling the sharing of high-speed Internet connections with user devices. It is equipped with one 2.5Gbps WAN port, one 2.5Gbps LAN port, and two 1Gbps LAN ports. Additionally, it supports simultaneous dual-band wireless connectivity (2.4 GHz and 5 GHz, MIMO 2x2) compliant with the IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) standards.

The iGate M74-B offers flexible operating modes—including Router, Repeater, and Mesh Node—to extend coverage and optimize network performance. It features a WPS button for rapid pairing between Mesh nodes and is compatible with the VNPT OneMesh ecosystem. Centralized management is available via a mobile app or the TR-069 system, ensuring a stable, secure, and flexible Wi-Fi experience for users.

Mesh Features:

- Supports Mesh setup and automatic Wi-Fi configuration synchronization with VNPT Technology Mesh AP devices via the IEEE 1905 protocol.
- Supports adding new Mesh nodes (up to 10 nodes) via the WPS button, Web interface, or mobile app.
- Supports Multi-Backhaul connectivity (non-simultaneous) across Ethernet, 5 GHz Wi-Fi, and 2.4 GHz Wi-Fi, automatically selecting the optimal backhaul connection.
- Supports AP Steering to the best AP within the Mesh network.
- Supports automatic selection of the optimal Mesh backhaul. - Supports Star and Daisy Chain topologies.
- Supports Mesh connection setup and automatic WiFi configuration synchronization with VNPT Technology ONT devices via the IEEE 1905 protocol.

System features:

- Supports local firmware upgrades via WebGUI and remote upgrades via TR-069 and mobile app interfaces.
- Supports configuration backup and restoration.
- Supports device reboot while retaining configuration.
- Supports factory reset.
- Supports Internet time synchronization.
- Uses digital authentication for released firmware.
